dimensions RENAULT TRAFIC
Does Renault Trafic suit your business?
Discover the Renault Trafic versions
Weight, loads and volumes
Loading area
The Renault Trafic loading zone enables you to load up to 3 europallets for a maximum weight of 1266 kg.*
*Max. weight for the L2H1 version.
| Weight, loads (kg) and usable volume (m3) |
L1H1 - SL28 |
L1H1 - SL30 | L1H2 - SH30 | L2H1 - LL30 | L2H2 - LH30 |
|---|---|---|---|---|---|
| Gross vehicle weight (GVW)* |
2835 – 2660 |
2955 - 2985 | 2995 |
3050 - 3070 |
3070 |
| Kerb weight* | 1757 - 1824 |
1757 - 1810 |
1881 - 1903 |
1810 - 1877 |
1925 - 1947 |
| Max payload* | 1036 - 1078 |
1170 - 1198 |
1092 - 1114 |
1193 - 1240 |
1123 - 1145 |
| Max front axle load* | 1387 - 1625 |
1387 - 1625 |
1437 | 1387 - 1625 | 1516 |
| Max rear axle load* | 1448 - 1650 |
1448 – 1650 |
1558 |
1448 - 1650 |
1554 |
| Max towing weight (braked / unbraked) | 1840 - 2000/750 |
1715 - 2000/750 | 2000/750 | 2000/750 | 2000/750 |
| Usable volume in the 2- to 3-seat version (m3) | 5.2 | 5.2 | 7.2 | 6 | 8.6 |
*Dependant on engine
| Weights and loads (kg) | L2H1 - LL30 |
|---|---|
| Gross vehicle weight (GVW)* | 3070 |
| Kerb weight* | 1938 - 2005 |
| Max payload | 1065 - 1132 |
| Usable volume (m3) | 4 |
| Max front axle load | 1422 - 1625 |
| Max rear axle load | 1546 - 1650 |
| Max towing weight (braked/unbraked) | 1670 – 2000/750 |
*Dependant on engine
Renault Trafic
Versatile Dimensions
Offering you a wide range of tailor made and practical solutions

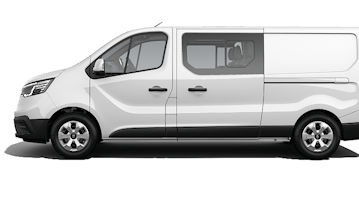

Crew Van

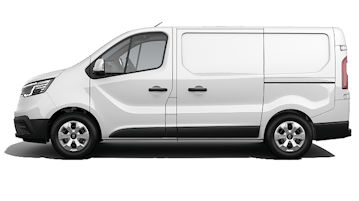

Panel Van
Renault Trafic in detail
Dimensions
Crew Van
Panel Van
